****No longer available****
LG41

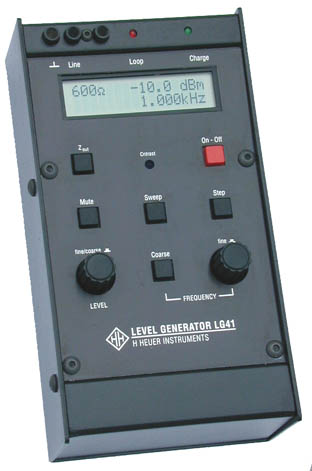

The Level Generator LG41 is a handheld battery powered instrument for testing Voice Frequency transmission circuits and lines used for xDSL upto 200 kHz. Great care has been taken to achieve easy operation of this instrument. All functions are activated by one button. Frequency and level are set with rotary encoders allowing ease and precision.

The following features are provided:

  • 85 hours operation with dry cells
  • Battery voltage monitor
  • Loop current LED
  • 10 Hz to 200 kHz level generator
  • 15 Spot frequencies
  • -50 dBm to +5 dBm Output Level
  • Sweep
  • Closed-box electronic calibration
  • 0 W , 135 W , 600 W , TN12 impedance
  • Muting
